Sorting Algorithms

OCR J277 requires knowledge of three sorting algorithms: bubble sort, insertion sort, and merge sort. You must be able to apply each to a data set, recognise them from a description or pseudocode, and understand their pre-requisites and behaviour.

You are not required to write or memorise the code for these algorithms. Focus on understanding the steps and being able to hand-trace them on a given list.

Algorithm	Method	Typical performance
Bubble sort	Repeatedly swap adjacent elements that are in the wrong order	Slow on large lists; simple to understand
Insertion sort	Build a sorted section by inserting each new element in its correct position	Efficient on nearly-sorted lists
Merge sort	Divide into halves, sort each half, merge back together	Efficient on large lists; always $O(n\log n)$

(Extra context — Big O notation such as $O(n^2)$ and $O(n\log n)$ describes how performance scales with input size. It is not required by OCR J277, but helps explain why merge sort is preferred for large data sets.)

Bubble sort repeatedly compares adjacent pairs of elements and swaps them if they are in the wrong order. After each full pass through the list, the largest unsorted element has "bubbled" to its correct position at the end.

Steps for one complete sort (ascending order):

1. Compare elements at index 0 and 1. If index 0 > index 1, swap them.
2. Move to index 1 and 2. Compare and swap if needed.
3. Continue to the end of the list. This completes one pass.
4. After each pass, the last unsorted position is now correct — shorten the comparison range by 1.
5. Repeat until a full pass completes with no swaps (the list is sorted).

The algorithm can terminate early if a pass produces no swaps — a sign the list is already in order.

(Extra context — OCR J277 does not require you to write or recall pseudocode for bubble sort; the steps and hand-traces are what are assessed.)

FOR pass = 1 TO len(list) - 1
    FOR i = 0 TO len(list) - pass - 1
        IF list[i] > list[i+1] THEN
            temp = list[i]
            list[i] = list[i+1]
            list[i+1] = temp
        END IF
    END FOR
END FOR

Sort [5, 3, 8, 1, 9, 2] into ascending order.

Pass 1 (compare positions 0–4):

Comparison	Before	Swap?	After
index 0,1	5, 3, 8, 1, 9, 2	Yes (5>3)	3, 5, 8, 1, 9, 2
index 1,2	3, 5, 8, 1, 9, 2	No	3, 5, 8, 1, 9, 2
index 2,3	3, 5, 8, 1, 9, 2	Yes (8>1)	3, 5, 1, 8, 9, 2
index 3,4	3, 5, 1, 8, 9, 2	No	3, 5, 1, 8, 9, 2
index 4,5	3, 5, 1, 8, 9, 2	Yes (9>2)	3, 5, 1, 8, 2, 9

After pass 1: [3, 5, 1, 8, 2, 9] — 9 is in its final position.

Pass 2 (compare positions 0–3): [3, 5, 1, 8, 2, 9] Comparisons: (3,5) no; (5,1) yes → [3,1,5,8,2,9]; (5,8) no; (8,2) yes → [3,1,5,2,8,9]

Pass 3: [3,1,5,2,8,9] → [1,3,2,5,8,9]

Pass 4: [1,3,2,5,8,9] → [1,2,3,5,8,9]

Pass 5: [1,2,3,5,8,9] — no swaps → sort complete.

Final: [1, 2, 3, 5, 8, 9] ✓

Insertion sort divides the list into a sorted section (initially just the first element) and an unsorted section. It takes each element from the unsorted section and inserts it into the correct position in the sorted section.

Steps:

1. Start: sorted section = [first element]; unsorted section = rest of list.
2. Take the first element from the unsorted section. Call it the key.
3. Compare the key backwards through the sorted section.
4. Shift each element that is greater than the key one position to the right.
5. Insert the key into the gap created.
6. Repeat from step 2 until the unsorted section is empty.

(Extra context — OCR J277 does not require you to write or recall pseudocode for insertion sort; the steps and hand-traces are what are assessed.)

FOR i = 1 TO len(list) - 1
    key = list[i]
    j = i - 1
    WHILE j >= 0 AND list[j] > key
        list[j+1] = list[j]
        j = j - 1
    END WHILE
    list[j+1] = key
END FOR

Insertion sort is efficient when the list is already nearly sorted, because few elements need to be shifted.

Sort [5, 3, 8, 1, 9, 2] into ascending order.

Pass	Key	Sorted section (before insert)	Sorted section (after insert)
1	3	[5]	[3, 5] — 3 < 5, shift 5 right
2	8	[3, 5]	[3, 5, 8] — 8 > 5, insert after 5
3	1	[3, 5, 8]	[1, 3, 5, 8] — 1 < all, shift all right
4	9	[1, 3, 5, 8]	[1, 3, 5, 8, 9] — 9 > all, insert at end
5	2	[1, 3, 5, 8, 9]	[1, 2, 3, 5, 8, 9] — 2 > 1, shift 3,5,8,9 right

Pass 3 in detail — key = 1, sorted = [3, 5, 8]:

• Compare 1 to 8: 1 < 8, shift 8 right → [3, 5, _, 8]
• Compare 1 to 5: 1 < 5, shift 5 right → [3, _, 5, 8]
• Compare 1 to 3: 1 < 3, shift 3 right → [_, 3, 5, 8]
• No more elements: insert 1 at index 0 → [1, 3, 5, 8]

Final: [1, 2, 3, 5, 8, 9] ✓

Merge sort uses a divide and conquer strategy. It splits the list in half repeatedly until every sub-list contains only one element (which is trivially sorted), then merges pairs of sub-lists back together in the correct order.

Stage 1 — Divide: split the list in half until every sub-list has 1 element.

Stage 2 — Merge: merge pairs of sub-lists. When merging two sorted sub-lists, repeatedly pick the smaller of the two front elements.

Worked example — sort [5, 3, 8, 1, 9, 2]:

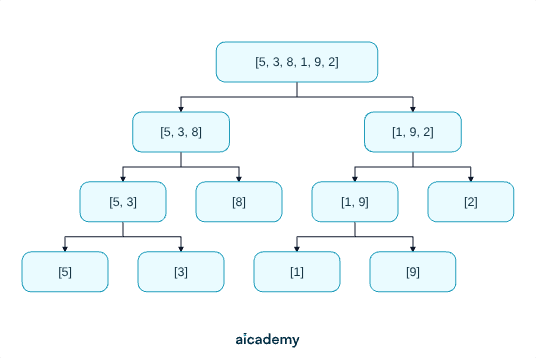

Divide stage:

Every sub-list now has 1 element — each is sorted by definition.

Merge stage:

• Merge [5] and [3]: compare 5 vs 3 → take 3; take remaining 5 → [3, 5]
• [8] is already single → [8]
• Merge [1] and [9]: compare 1 vs 9 → take 1; take 9 → [1, 9]
• [2] is already single → [2]
• Merge [3, 5] and [8]: take 3, take 5, take 8 → [3, 5, 8]
• Merge [1, 9] and [2]: take 1, take 2, take 9 → [1, 2, 9]
• Merge [3, 5, 8] and [1, 2, 9]:
  • Compare 3 vs 1 → take 1
  • Compare 3 vs 2 → take 2
  • Compare 3 vs 9 → take 3
  • Compare 5 vs 9 → take 5
  • Compare 8 vs 9 → take 8
  • Take remaining 9
  • → [1, 2, 3, 5, 8, 9] ✓

Feature	Bubble sort	Insertion sort	Merge sort
Strategy	Swap adjacent pairs	Insert into sorted section	Divide, then merge
Best case	One pass (already sorted)	$O(n)$ — nearly sorted list	Always divides fully
Large unsorted lists	Slow	Slow	Efficient
Nearly-sorted lists	Reasonable (early exit)	Very efficient	Efficient but may do more work
Complexity to implement	Simple	Moderate	More complex
Extra memory needed	No	No	Yes (temporary sub-lists)

Merge sort is generally preferred for large or unknown data sets because it performs consistently well. Insertion sort is preferred when the data is likely to be nearly sorted.

Common exam question: given pseudocode or a description, identify which sorting algorithm is being used. Key identifiers:

• "Compare adjacent elements and swap" → bubble sort
• "Insert each element into its correct position in a sorted section" → insertion sort
• "Split into halves, sort each half, merge back" → merge sort

1. Forgetting to show all passes in a bubble sort trace

Show every comparison in every pass, not just the swaps. Many marks are awarded for the intermediate states. Stop only when a full pass produces no swaps, or after n−1 passes.

2. Confusing the key with the wrong element in insertion sort

The key is always the first element of the unsorted section — the element being inserted. Shift elements from the sorted section to the right; do not move the key until its position is found.

3. Merging out of order in merge sort

When merging two sorted sub-lists, always compare the front elements of each sub-list and take the smaller one. Work through both sub-lists simultaneously — do not just concatenate them.

4. Identifying algorithms from descriptions

If you see this...	The algorithm is...
"Repeatedly compare neighbours and swap if out of order"	Bubble sort
"Take the next item and insert it into the correct position among those already sorted"	Insertion sort
"Split in half, sort each half recursively, combine"	Merge sort
