Arrays and Records

An array is a fixed-length, ordered collection of elements of the same data type, stored under a single variable name and accessed by index.

Arrays are the standard way to store a collection of related values — test scores for a class, temperatures for each day of the week, or pixel colours in an image.

scores = [72, 85, 91, 60, 78]   # 5-element integer array

Key properties of arrays:

Property	Detail
Fixed length	The size is set when the array is created and does not change
Same data type	All elements must be the same type (all integers, all strings, etc.)
Zero-indexed	The first element is at index 0
Random access	Any element can be read or written by its index in constant time

OCR J277 describes arrays as fixed-length or static structures — the array size is declared upfront and cannot grow or shrink at runtime.

A 1D array is a single row of elements. Access elements using their index (starting at 0).

days = ["Mon", "Tue", "Wed", "Thu", "Fri"]
#          0      1      2      3      4

days[0]        # "Mon"
days[2]        # "Wed"
days[4]        # "Fri"
days[2] = "Wednesday"   # update index 2 in place

Traversing a 1D array — visiting every element in order:

scores = [72, 85, 91, 60, 78]
for i in range(len(scores)):
    print("Student", i + 1, "scored", scores[i])

Output:

Student 1 scored 72
Student 2 scored 85
Student 3 scored 91
Student 4 scored 60
Student 5 scored 78

Finding the total and average:

total = 0
for i in range(len(scores)):
    total = total + scores[i]
average = total / len(scores)    # 77.2

Worked example 1 — count how many scores are above 75:

scores = [72, 85, 91, 60, 78]
count = 0
for i in range(len(scores)):
    if scores[i] > 75:
        count = count + 1
print(count, "students scored above 75")   # 3 students

Verify manually: 85 > 75 ✓, 91 > 75 ✓, 78 > 75 ✓ → 3. Correct.

Worked example 2 — find the highest score:

highest = scores[0]          # assume first element is highest
for i in range(1, len(scores)):
    if scores[i] > highest:
        highest = scores[i]
print("Highest score:", highest)   # 91

Starting highest at scores[0] (not 0) ensures the result is correct even if all scores are negative.

Worked example 3 — reverse a 1D array into a new array:

original = [1, 2, 3, 4, 5]
reversed_arr = [0] * len(original)    # create array of same size
for i in range(len(original)):
    reversed_arr[i] = original[len(original) - 1 - i]
# reversed_arr = [5, 4, 3, 2, 1]

A 2D array organises data in rows and columns — like a table or spreadsheet. It is an array of arrays.

grid = [
    [1, 2, 3],
    [4, 5, 6],
    [7, 8, 9]
]

Access element at row r, column c using grid[r][c]:

grid[0][0]    # 1  — row 0, column 0
grid[1][2]    # 6  — row 1, column 2
grid[2][1]    # 8  — row 2, column 1

OCR J277 states that 2D arrays can emulate database tables — each row represents a record, each column represents a field.

Example — a 2D array as a student table:

students = [
    ["Alice", 17, "A"],
    ["Bob",   16, "B"],
    ["Carol", 17, "A"]
]
# students[1][0] = "Bob"  (row 1, name column)
# students[0][2] = "A"    (row 0, grade column)

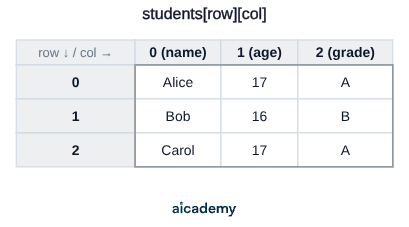

Reading students[row][col]: the first index picks the row, the second picks the column. The grid below shows the same data with its index labels.

Traversing a 2D array — visit every cell using nested loops:

grid = [[1, 2, 3], [4, 5, 6], [7, 8, 9]]

for row in range(3):
    for col in range(3):
        print(grid[row][col], end=" ")
    print()   # newline after each row

Output:

1 2 3
4 5 6
7 8 9

Worked example — print all student names from the 2D student table:

students = [["Alice", 17, "A"], ["Bob", 16, "B"], ["Carol", 17, "A"]]
for i in range(len(students)):
    print(students[i][0])   # column 0 = name

Output: Alice, Bob, Carol

Worked example — find all students with grade "A":

for i in range(len(students)):
    if students[i][2] == "A":   # column 2 = grade
        print(students[i][0], "achieved grade A")

Output: Alice achieved grade A, Carol achieved grade A

A record groups together related data items of different data types under a single named structure. Where an array stores many values of the same type, a record stores a single entity's attributes.

Structure of a record:

RECORD Student
    name : String
    age  : Integer
    grade: Character
END RECORD

Why records? An array of student names and a separate array of student ages are error-prone — deleting a name but not the matching age corrupts the data. A record keeps all fields for one student together.

Records in practice (Python uses dictionaries or classes for this, but the concept is the same):

student = {
    "name":  "Alice",
    "age":   17,
    "grade": "A"
}
print(student["name"])    # "Alice"
print(student["grade"])   # "A"

A key difference from a 2D array: record fields can hold different data types (name=String, age=Integer, grade=Character), whereas all elements of an array must be the same type.

1. Confusing row and column indices in 2D arrays

grid[r][c] — the first index is the row, the second is the column. grid[2][0] is row 2, column 0 — not the other way round. Sketch the grid to confirm before answering.

2. Starting the highest-value search at 0

highest = 0 fails if all scores are negative (e.g. temperatures below zero). Always initialise with array[0] — the first element of the actual data.

3. Treating arrays as variable-length

OCR J277 defines arrays as fixed-length structures. You cannot append to an array at runtime — the size is set when it is created. (Python lists can grow, but in the context of this spec, treat arrays as fixed.)

4. Confusing arrays and records

An array stores multiple values of the same type. A record stores multiple fields of different types that describe one entity. Use an array for "all the scores"; use a record for "all details about one student".

Mistake	Correction
grid[col][row]	grid[row][col] — row index first
highest = 0 before searching an array	highest = scores[0] — start from the first element
"I can add more items to the array later"	Arrays are fixed-length; their size cannot change at runtime
