BNF and Syntax Diagrams

Backus-Naur Form (BNF) is a formal notation for describing the grammar (syntax rules) of a language. It is used to define programming languages, file formats, and communication protocols.

A BNF grammar consists of production rules of the form:

<non-terminal> ::= definition

Terminals are the actual symbols of the language — they cannot be broken down further. In BNF they are written as literal values:

0 | 1 | 2 | a | b | + | (    ← these are all terminals

Non-terminals are syntactic categories — placeholders that expand into further rules. They are written in angle brackets:

<digit>  <letter>  <expression>  <identifier>    ← non-terminals

::= means "is defined as". | means "or" (alternative).

Example — defining a single digit:

<digit> ::= 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9

This says: a <digit> is exactly one of the ten decimal digit characters.

A grammar for simple identifiers (a letter optionally followed by letters or digits):

<letter>     ::= a | b | c | d | e | f | g | h | i | j | k | l | m |
                 n | o | p | q | r | s | t | u | v | w | x | y | z
<digit>      ::= 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9
<identifier> ::= <letter> | <identifier><letter> | <identifier><digit>

Derivation — showing that cat3 is a valid <identifier>, one non-terminal replaced per step:

<identifier>
→ <identifier><digit>         (rule: <identifier> ::= <identifier><digit>)
→ <identifier>3               (rule: <digit> ::= 3)
→ <identifier><letter>3       (rule: <identifier> ::= <identifier><letter>)
→ <identifier>t3              (rule: <letter> ::= t)
→ <identifier><letter>t3      (rule: <identifier> ::= <identifier><letter>)
→ <identifier>at3             (rule: <letter> ::= a)
→ <letter>at3                 (rule: <identifier> ::= <letter>)
→ cat3                        (rule: <letter> ::= c)

Derivation shows step-by-step replacement of non-terminals until only terminals remain.

BNF rules can be recursive — a non-terminal may appear on both sides of a rule. This allows infinite languages to be described with a finite grammar.

Integer grammar:

<digit>   ::= 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9
<integer> ::= <digit> | <integer><digit>

The recursive rule <integer> ::= <integer><digit> means: an integer is either a single digit, or an integer followed by a digit. This generates all non-empty sequences of digits: 0, 1, …, 9, 00, 01, …, 99, 100, …

Arithmetic expression grammar:

<expr>   ::= <term> | <expr> + <term> | <expr> - <term>
<term>   ::= <factor> | <term> * <factor> | <term> / <factor>
<factor> ::= <number> | ( <expr> )
<number> ::= <digit> | <number><digit>
<digit>  ::= 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9

This grammar handles operator precedence correctly: * and / bind more tightly than + and - because <term> is nested inside <expr>.

Without brackets, many languages cannot be described by regular expressions alone — recursive BNF (context-free grammars) are needed. This is why compilers use BNF rather than regular expressions to parse arithmetic.

A syntax diagram (railroad diagram) is a visual alternative to BNF. It represents the same grammar as a flowchart-like diagram.

Notation:

• Rectangular box: non-terminal (expand further using its own diagram)
• Rounded box (oval/circle): terminal (literal character or token)
• Flow follows arrows; branches represent alternatives; loops represent repetition

Example — <digit> syntax diagram:

Rounded boxes (0 through 9) are terminals; the branching represents the | alternatives.

Example — <integer> syntax diagram:

Enter, process one [digit], then either exit or loop back to process another [digit]. This represents one or more digits — matching the recursive BNF rule <integer> ::= <digit> | <integer><digit>.

A grammar written in BNF generates a context-free language — a language where each production rule replaces a single non-terminal regardless of the surrounding context.

Context-free languages are more expressive than regular languages:

• Regular languages: described by regular expressions and accepted by FSMs
• Context-free languages: described by BNF grammars; include arithmetic expressions, most programming language syntax

Parse tree — a tree that represents the derivation of a string from a grammar. Each internal node is a non-terminal; each leaf is a terminal.

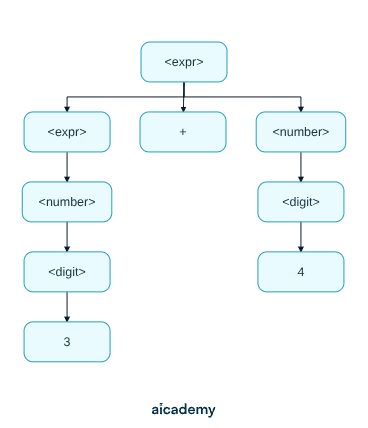

Example — parse 3 + 4 using <expr> ::= <number> | <expr> + <number>:

Parse trees make the structure of an expression explicit. Compilers build parse trees (or equivalent internal representations) during syntax analysis.

Ambiguous grammar — a grammar where a string has more than one parse tree. Ambiguous grammars cause problems for compilers because the meaning of an expression becomes unclear.

1. Using the wrong brackets for terminals vs non-terminals

Terminals are written as literal characters (unbracketed or quoted); non-terminals are in angle brackets <like this>. Writing <0> instead of 0 for a digit terminal conflates the two.

2. Stopping a derivation at a non-terminal

A complete derivation ends when every symbol is a terminal. If your derivation still contains <digit> or <identifier>, you have not finished — continue applying rules.

3. Confusing recursion with circular definition

A recursive rule like <integer> ::= <digit> | <integer><digit> is not circular — the base case <integer> ::= <digit> terminates the recursion. A truly circular definition with no base case generates nothing.

4. Swapping the symbols for rectangular and rounded boxes in syntax diagrams

In a syntax diagram, rectangular (square-cornered) boxes contain non-terminals; rounded (oval) boxes contain terminals. Getting these backwards is a mark-scheme error.

5. Claiming BNF can describe any language

BNF describes context-free languages. Some languages (like those requiring context-sensitive rules, e.g. C's type declarations) require more powerful grammars. BNF cannot express every possible language.
